https://exxentric.com/manuals/#kbox

Up to 1 hour of work is included in the price

73 x 43.5 cm or 29 x 17" (kBox Lite or Active), 90 x 55 cm or 35 x 22" (kBox Pro)

81 x 51 cm or 32 x 20" (kBox Lite or Active), 98 x 63 cm or 39 x 25" (kBox Pro)

21 cm or 8.3" (kBox Lite or Active), 23 cm or 9.1" (kBox Pro)

10 kg or 22 lbs (kBox Lite), 15.5 kg or 34 lbs (kBox Pro), 16 kg or 35 lbs (kBox Active)

0.005 kgm² – 0.200 kgm² (kBox Lite), 0.005 kgm² – 0.280 kgm² (kBox Pro)

180 cm (71")

kMeter feedback system built-in to kBox Pro & kBox Lite or available as an add-on to the kBox Active

L – 0.050 kgm² · Fits all devices, M – 0.025 kgm² · Fits all devices, S – 0.010 kgm² · Fits all devices, XL – 0.070 kgm² · excl. kBox Lite/Active, XS – 0.005 kgm² · Fits all devices

kBox

Rows, swings and etc

https://exxentric.com/manuals/#kpulley

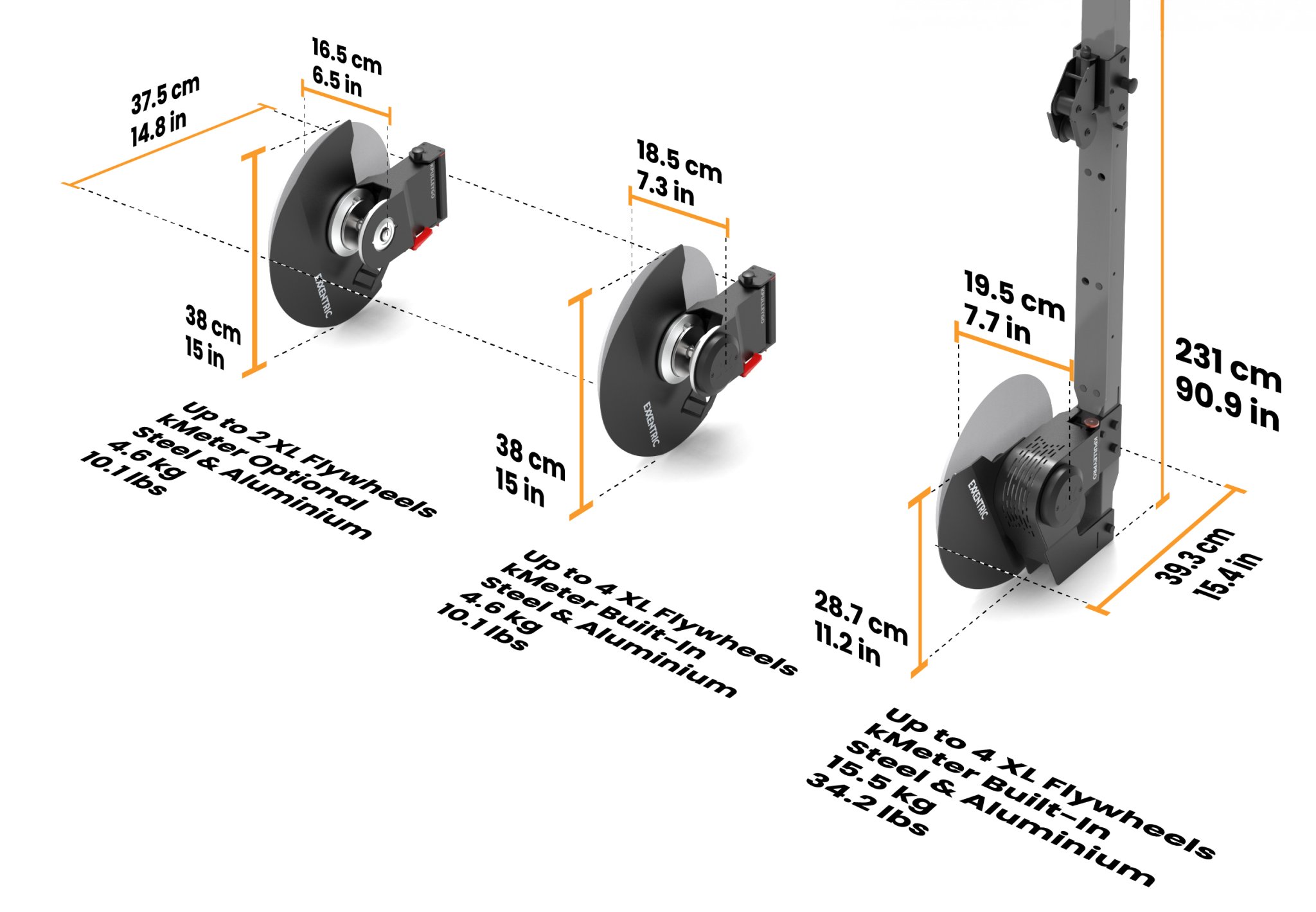

16.5 cm or 6.5" (kPulley Go), 18.5 cm or 7.3" (kPulley Go+), 19.5 cm or 7.7" (kPulley Pro)

37.5 cm or 14.8" (kPulley Go and Go+), 39 cm or 15.4" (kPulley Pro)

28.7 cm or 11.2" (kPulley Pro), 38 cm or 15" (kPulley Go and Go+)

4.6 kg or 10.1 lbs (kPulley Go and Go+), 8.5 kg or 18.7 lbs (kPulley Pro)

0.005 kgm² – 0.280 kgm² (kPulley Pro and Go+), 0.005 kgm² – 0.140 kgm² (kPulley Go)

150 cm or 59" (kPulley Go and Go+), 190 cm or 74.8" (kPulley Pro)

kMeter feedback system built-in to kPulley Pro or available as an add-on to the kPulley Go

L – 0.050 kgm² · Fits all devices, M – 0.025 kgm² · Fits all devices, S – 0.010 kgm² · Fits all devices, XL – 0.070 kgm² · excl. kBox Lite/Active, XS – 0.005 kgm² · Fits all devices

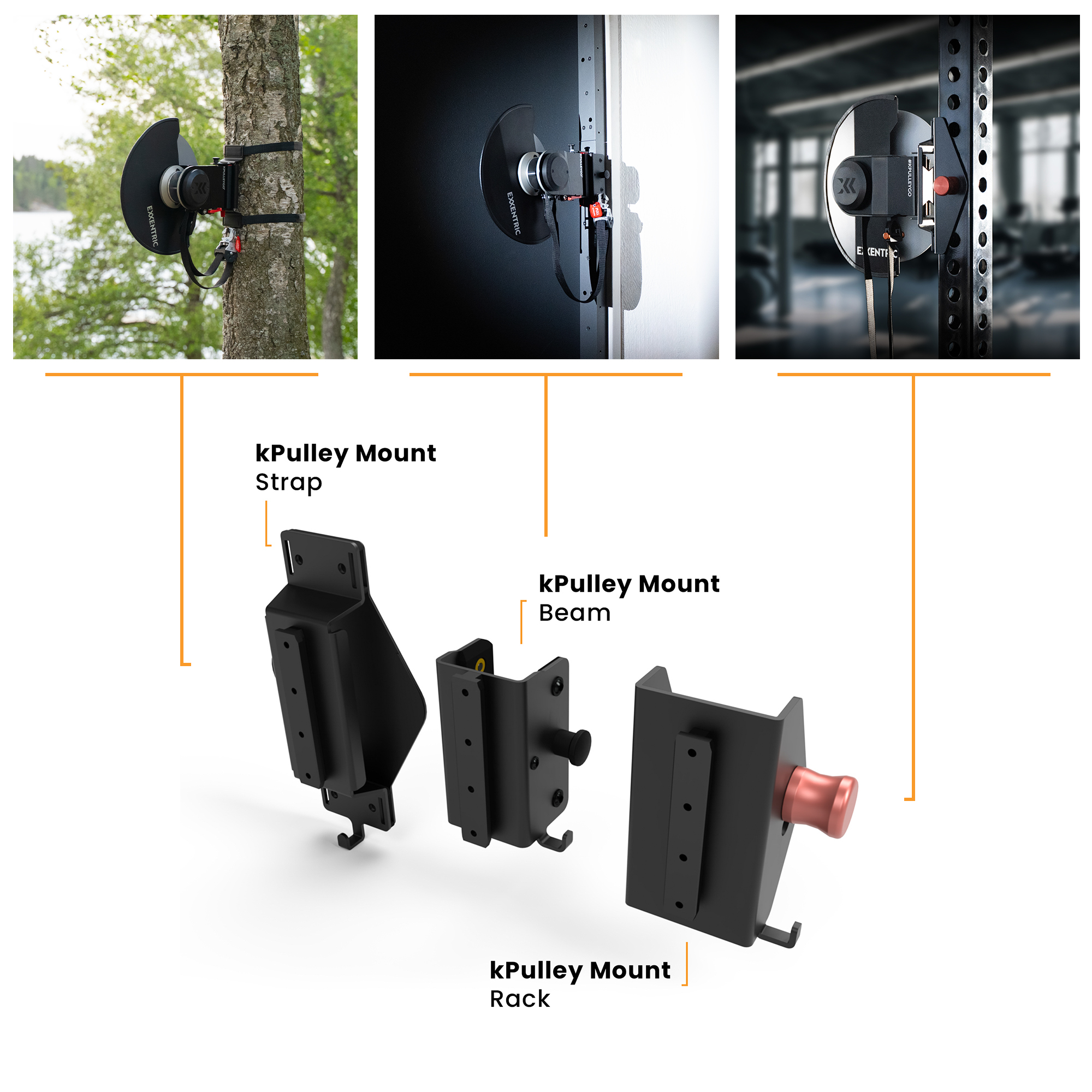

231 cm or 90.9" (kPulley Pro Beam Mount), 25.6 cm or 10.1" (kPulley Go 3×3 Rack Mount), 26.1 cm or 10.3" (kPulley Go Strap Mount)

5 cm or 2" (kPulley Pro Beam Mount), 7 cm or 2.8" (kPulley Go Strap Mount), 8.6 cm or 3.4" (kPulley Go 3×3 Rack Mount)

3 cm or 1.2" (kPulley Pro Beam Mount), 7.6 cm or 3" (kPulley Go Rack Mount), 7.6 cm or 3" (kPulley Go Strap Mount)

0.71 kg or 1.56 lbs (kPulley Go Strap Mount), 1.7 kg-1.9 kg or 3.7 lbs-4.2 lbs (kPulley Go 3×3 Rack Mount), 7 kg or 15.4 lbs (kPulley Pro Beam Mount)

Any pillars, poles, beams or racks used for strapping should adhere to the width mentioned above. Any attachment to narrower objects should be done at your own discretion with a spacer/distance piece on each side to support the attachment straps.

Rogue (Monster and Monster Lite), Sorinex (Basecamp and XL), Power Lift (Pro and Collegiate)

Screws compatible with your wall are not included with this equipment and will need to be acquired elsewhere

Enables kPulley Go attachment to Exxentric Beams

13 cm/5.1 inches

8.9 cm/ 3.5 inches (kPulley Pro), 8.2 cm/3.2 inches (Gen 4)

8.9 cm/ 3.5 inches (kPulley Pro), 7.4 cm/2.9 inches (Gen 4)

0.7 kg/1.5 lbs (kPulley Pro), 0.50 kg/1.1 lbs (Gen 4)

Steel and POM

XS – 0.005 kgm², S – 0.010 kgm², M – 0.025 kgm², L – 0.050 kgm², XL – 0.070 kgm²

kBox Pro, kBox Lite (excl. XL), kBox Active (excl. XL), kPulley Pro, kPulley Go, LegExx, LegFlexx

Standard, Color Coded

XXS, XS, S, M, L, XL, XXL

950 g – 1350 g per harness

Squats, lateral squats, split squats, lunges, calf press

kBox (recommended), kPulley

90 g each (Original), 122 g each (A90)

Pulls, rows, rotations, deadlifts, curls

kBox, kPulley

58 cm (original), 75.5 cm (knurled)

0.6 kg (original), 3.2 kg (knurled)

Aluminium (original), stainless steel (knurled)

200 kg/440 lbs/1960 N (original), 400 kg/880 lbs/3920 N (knurled)

Straight-arm lifts, deadlifts, high pulls, rows, biceps curls, squat & lunge variations, shoulder press exercises and more

kBox, kPulley

Adjustable

150 g each

Knee pulls, hamstring curls, leg extensions, hip adduction, hip abduction

kBox, kPulley

Pro + Standard – 54.5 cm (21.5"), Lite / Active + Standard – 44.5 cm (17.5"), Lite / Active + Platform Extension – 51 cm (20.1")

10 cm (4")

5 cm (2")

Pro + Standard – 1.8 kg (4 lbs), Lite / Active + Standard – 1.6 kg (3.5 lbs), Lite / Active + Platform Extension – 1.9 kg (4.2 lbs)

Storm Gray

Squat variations, calf press

600 g

160 cm – 270 cm

Rotations, twists, lateral lunges

kPulley (recommended), kBox

1 kg/2.2 lbs

114 cm/44.9 inches

Aluminum

Freestanding, Wall Mounted

115 cm (Freestanding), 16 cm (Wall Mounted)

62 cm (Freestanding), 97.5 cm (Wall Mounted)

42 cm (Freestanding), 5 cm (Wall Mounted)

20.5 kg (Freestanding), 4 kg (Wall Mounted)

24 (Freestanding), 4 (Wall Mounted)
