Additional information
| SKU | CMEDA |
|---|

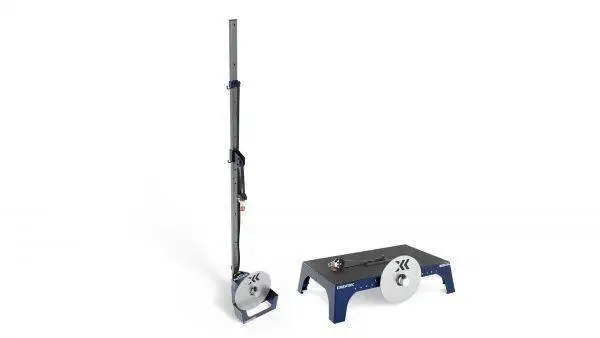

kPulley2 Base
| Manual | |
|---|---|
| Color | Midnight Blue, Jet Black |
| Device height | 225 cm |
| Working height | 40–225 cm |
| Weight | 11 kg |
| Inertia range (standard) | 0.005 kgm² – 0.140 kgm² |
| Range of motion | 150 cm |
| Feedback | Built-in kMeter feedback system (SmartCoach compatibility is available upon request) |
| Compatible flywheels | 0.005 kgm², 0.010 kgm², 0.025 kgm², 0.050 kgm², 0.070 kgm² |
| Beam variation | Undivided beam (197 cm) available upon request |
kPulley Beam
| Options | L, XL, Rack Attachment, 3×3" (kPulley Go) |
|---|---|
| Compatibility | kPulley Go (all options), kPulley2 (L and XL) |
| Color | Space Gray (L and XL), Jet Black (Rack Attachment) |
| Height | 197 cm/77.6 inches (L), 225 cm/88.6 inches (XL), 19.6 cm/7.7 inches (Rack Attachment) |
| Width | 5 cm/2 inches |
| Weight | 6.7 kg/14.8 lbs (L), 8 kg/17.6 lbs (XL), 2.1 kg/4.6 lbs (Rack Attachment) |
| Rack Attachment specifications | Facilitates attachment to power racks with 3″ x 3″ tubing, 1″ holes and 2″ spacing |
| Distance b/n Rack Attachment rods | 12.74 cm/5.02 inches |
| Mounting options for L and XL | Strap (attachment straps sold separately) or Wall (screws not included) |
kMeter (built-in)
| Compatibility | All LegExx, LegFlexx, kPulley2, kBox Active, kBox Lite & kBox Pro devices with magnetic sensor discs |
|---|---|
| Sample rate | 10000 Hz (155 revolutions/second) |
| SKU | O-0010 |
kBox Pro Platform
| Manual | |
|---|---|
| Design | Midnight Blue, Carbon Black, Custom |
| Custom design limit | Up to 1 hour of work is included in the price |
| Top surface | 90 x 55 cm (35 x 22") |
| Foot print | 98 x 63 cm (39 x 25") |
| Height | 23 cm (9.1") |
| Weight | 15.5 kg (34 lbs) |
| Inertia range (standard) | 0.005 kgm² – 0.280 kgm² |
| Range of motion | 180 cm (71") |
| Feedback | Built-in kMeter feedback system |
| Compatible flywheels | 0.005 kgm², 0.010 kgm², 0.025 kgm², 0.050 kgm², 0.070 kgm² |
kMeter (built-in)
| Compatibility | All LegExx, LegFlexx, kPulley2, kBox Active, kBox Lite & kBox Pro devices with magnetic sensor discs |
|---|---|
| Sample rate | 10000 Hz (155 revolutions/second) |
| SKU | O-0010 |
Angle Adjuster
| Compatibility | kBox |
|---|---|
| Exercises | Rows, swings and etc |
| SKU | O-0004 |
Flywheel
| Size | XS – 0.005 kgm², S – 0.010 kgm², M – 0.025 kgm², L – 0.050 kgm², XL – 0.070 kgm² |
|---|---|
| Compatibility | kBox4 Pro, kBox4 Lite, kBox4 Active, kPulley2, kPulley Go, LegExx, LegFlexx |
| Color | Standard, Color Coded |
Flywheel
| Size | XS – 0.005 kgm², S – 0.010 kgm², M – 0.025 kgm², L – 0.050 kgm², XL – 0.070 kgm² |
|---|---|
| Compatibility | kBox4 Pro, kBox4 Lite, kBox4 Active, kPulley2, kPulley Go, LegExx, LegFlexx |
| Color | Standard, Color Coded |
Flywheel
| Size | XS – 0.005 kgm², S – 0.010 kgm², M – 0.025 kgm², L – 0.050 kgm², XL – 0.070 kgm² |
|---|---|
| Compatibility | kBox4 Pro, kBox4 Lite, kBox4 Active, kPulley2, kPulley Go, LegExx, LegFlexx |
| Color | Standard, Color Coded |
Flywheel
| Size | XS – 0.005 kgm², S – 0.010 kgm², M – 0.025 kgm², L – 0.050 kgm², XL – 0.070 kgm² |
|---|---|
| Compatibility | kBox4 Pro, kBox4 Lite, kBox4 Active, kPulley2, kPulley Go, LegExx, LegFlexx |
| Color | Standard, Color Coded |
Advanced Flywheel Knob
| Size (diameter x height) | 5.25 x 4.25 cm |
|---|---|
| Weight | 250 g |
| Additional Inertia Capacity | 0.100 – 0.140 kgm² (i.e. up to 2 compatible flywheels) |
| Compatibility | kBox4 (since May 2018), , LegExx, LegFlexx, kPulley2 and kPulley1 |
| SKU | 91115 |
Hip Belt
| Size | Medium-Large, Small-Medium, 5-pack (Medium-Large) |
|---|---|
| Weight | 210 g – 280 g |
| Compatibility | kBox, kPulley |
| Exercises | Squats, lateral squats, lunges, split squats, calf press |
Harness
| Size | XXS, XS, S, M, L, XL, XXL |
|---|---|
| Weight | 950 g – 1350 g per harness |
| Exercises | Squats, lateral squats, split squats, lunges, calf press |
| Compatibility | kBox (recommended), kPulley |
Ankle Cuffs
| Size | Adjustable |
|---|---|
| Weight | 150 g each |
| Exercises | Knee pulls, hamstring curls, leg extensions, hip adduction, hip abduction |
| Compatibility | kBox, kPulley |
| SKU | 19053 |
kGrips
| Weight | 90 g each (Original), 122 g each (A90) |
|---|---|
| Exercises | Pulls, rows, rotations, deadlifts, curls |
| Compatibility | kBox, kPulley |
kBar
| Length | 58 cm (original), 75.5 cm (knurled) |
|---|---|
| Weight | 0.6 kg (original), 3.2 kg (knurled) |
| Material | Aluminium (original), stainless steel (knurled) |
| Load limit | 200 kg/440 lbs/1960 N (original), 400 kg/880 lbs/3920 N (knurled) |
| Exercises | Straight-arm lifts, deadlifts, high pulls, rows, biceps curls, squat & lunge variations, shoulder press exercises and more |
| Compatibility | kBox, kPulley |
Rotational Sling
| Weight | 600 g |
|---|---|
| Length | 160 cm – 270 cm |
| Exercises | Rotations, twists, lateral lunges |
| Compatibility | kPulley (recommended), kBox |
| SKU | 18908 |
Foot Block
| Length | Pro + Standard – 54.5 cm (21.5"), Lite / Active + Standard – 44.5 cm (17.5"), Lite / Active + Platform Extension – 51 cm (20.1") |
|---|---|
| Width | 10 cm (4") |
| Height | 5 cm (2") |
| Weight | Pro + Standard – 1.8 kg (4 lbs), Lite / Active + Standard – 1.6 kg (3.5 lbs), Lite / Active + Platform Extension – 1.9 kg (4.2 lbs) |
| Color | Storm Gray |
| Exercises | Squat variations, calf press |
Elevation Blocks (2-pack)
| Length | 35 cm |
|---|---|
| Width | 16 cm |
| Height | 5 cm (single) |
| Weight | 1 kg (per pair) |
| Material | EVA foam |
| Exercises | Squats, deadlifts, swings and other exercises requiring greater depth |
| Compatibility | kBox Pro, kBox Lite, kBox Active, kBox4, kBox3 |
| SKU | 19016 |
Extension Strap
| Adjustable length | up to 50 cm |
|---|---|
| Weight | 71 g |
| SKU | 19004 |
Decline Board
| Length | 48 cm |
|---|---|
| Width | 44.5 cm |
| Height | 13.5 cm |
| Weight | 6.5 kg |
| Exercises | Decline squats, calf press |
| Compatibility | kBox4 Pro, kBox4 Lite / Active |
| SKU | 19011 |

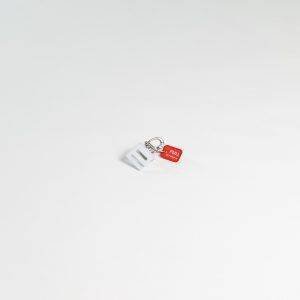

Single-Turn Buckle
| Size | 9 x 3 x 4.5 cm |
|---|---|
| Weight | 130 g |
| Compatibility | All variations of the kPulley and the kBox |
| Recommended inertia level | 0.005 kgm² |
| SKU | 19212 |
Poster
| Type | kPulley2 Exercises, Get Started, kBox4 |
|---|---|
| Size | B1, 70×100 cm |
Accessory Rack
| Type | Freestanding |
|---|---|
| Height | 115 cm |
| Width | 62 cm |
| Depth | 42 cm |
| Weight | 20.5 kg |
| Flywheel capacity | 24 |
| SKU | 19020 |

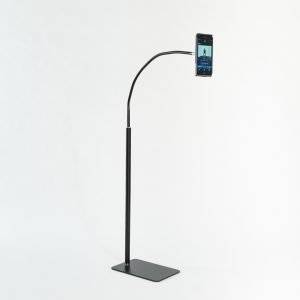

Phone / Tablet Stand
| Compatibility | Smartphones and tablets, 4" – 10.5" |
|---|---|
| Clamp width | 120 mm – 190 mm |
| Features | Flexible Gooseneck, 360° Rotation, Extendable Clamp |
| Support | Free-standing |
| Height | Up to 133.5 cm |
| Base size | 196 x 298 mm |
| Weight | 2.8 kg |
| Material | Carbon Steel and Plastic |
| SKU | 19025 |
